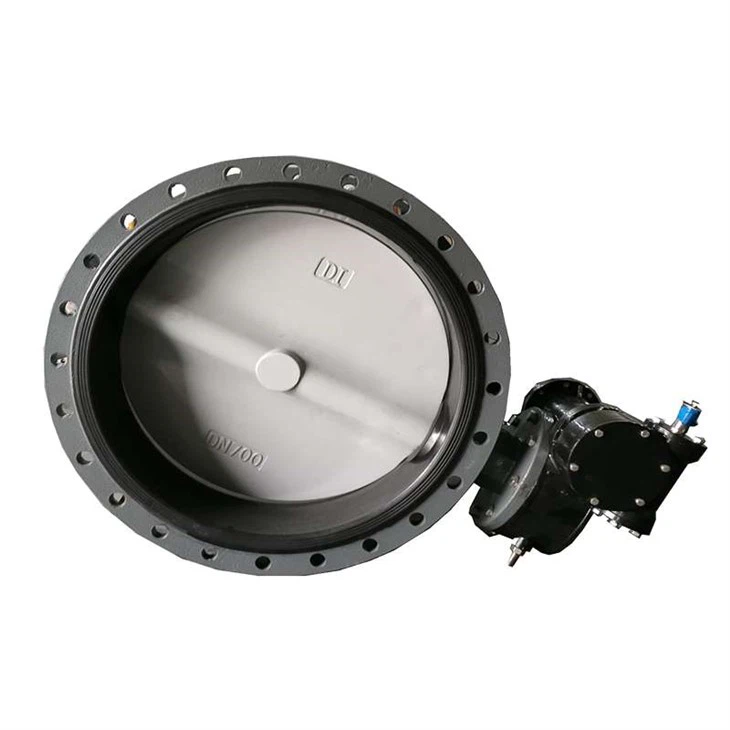

Large Diameter Turbine Flange Butterfly Valve
Working Pressure:PN10 / PN16 / PN25
Connection Type :Flanged
Operation:Manual Turbine Gearbox
Large diameter turbine flange butterfly valve, designed for efficient flow control in demanding industrial applications. This industrial butterfly valve is well designed and has excellent performance, making it an ideal solution for water treatment, power plants, petrochemical pipelines and municipal engineering systems.
What Is a Large-Diameter Turbine Flange Butterfly Valve?
A turbine flange butterfly valve is a rotary motion valve used to regulate flow, typically in large-diameter pipelines. It features a turbine-style gear operator for easy and accurate manual control, even under high pressure. The flanged connection ensures secure installation and excellent sealing performance, making it suitable for heavy-duty and large-scale industrial environments.
Key Features of Our Large-Diameter Butterfly Valve
Large Diameter Capability
Our large-diameter butterfly valve is available in sizes from DN600 to DN3000, accommodating the needs of high-capacity pipelines in critical infrastructure.
Turbine Gear Operation
Equipped with a turbine gearbox, the valve allows for smooth, reliable operation with minimal torque, ensuring safe control even under extreme flow conditions.
Flanged Connection Design
The flanged butterfly valve design offers enhanced stability, ease of installation, and superior leak resistance, meeting international standards like ANSI, DIN, JIS, and GB.
High-Quality Materials
We use ductile iron, carbon steel, and stainless steel for different parts of the valve body and disc. The seat material can be customized to EPDM, NBR, or PTFE, depending on the medium.
Corrosion and Wear Resistance
The valve is coated with epoxy resin or fusion-bonded epoxy (FBE), providing long-lasting protection against corrosion, abrasion, and harsh environmental conditions.
Specifications of the Large-Diameter Turbine Flanged Butterfly Valve
| Item | Description |
|---|---|
| Size Range | DN600 – DN3000 |
| Working Pressure | PN10 / PN16 / PN25 |
| Connection Type | Flanged |
| Operation | Manual Turbine Gearbox |
| Body Material | Ductile Iron, Carbon Steel, Stainless Steel |
| Disc Material | Stainless Steel, Ductile Iron with Epoxy Coating |
| Seat Material | EPDM, NBR, PTFE |
| Applicable Media | Water, Air, Oil, Gas, Chemicals |
Factory Tour
Product Packing & Shipping
Product Application
If you're looking for a high-quality, dependable handle flange butterfly valve, contact us today. Whether you need a single unit or a bulk order for industrial projects, we're ready to assist you with the best valve solutions on the market.
Contact us for pricing, technical specifications, and product catalogs.
