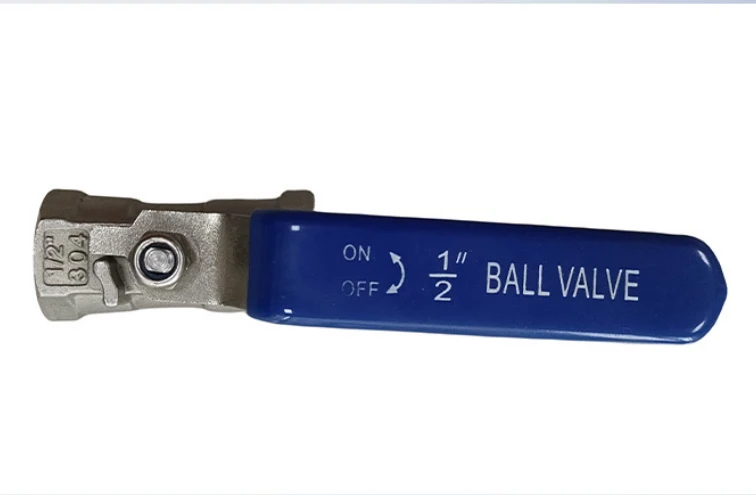

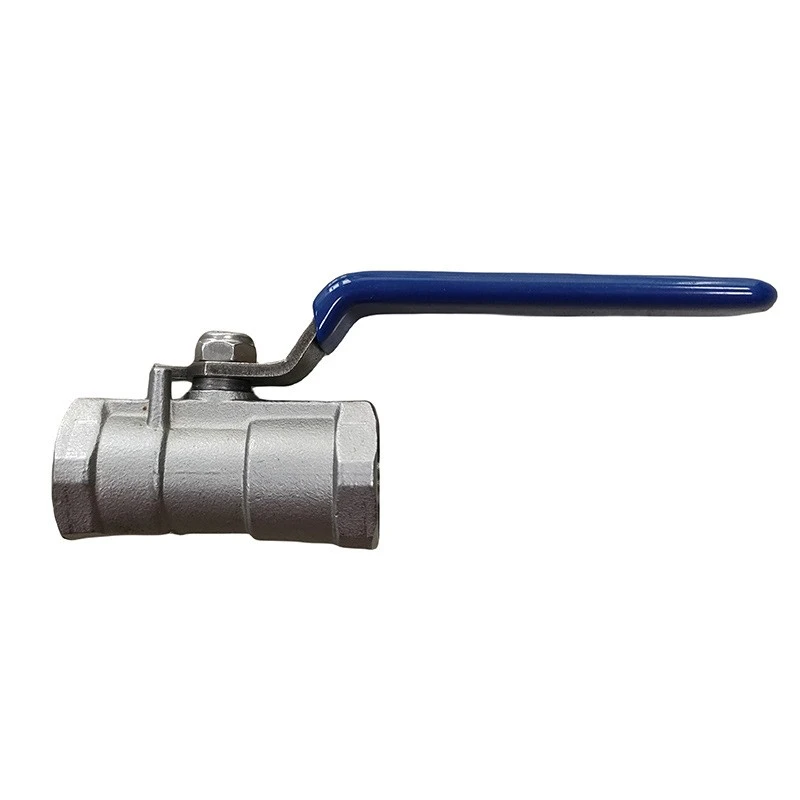

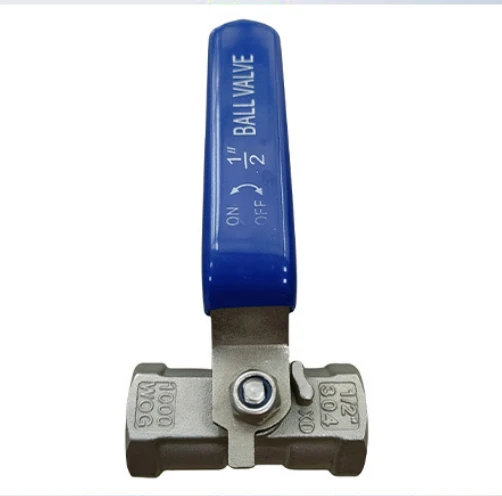

One Piece Threaded Ball Valve



One piece threaded ball valve is a common industrial valve, mainly used for cutting off and controlling fluids in pipeline systems. It has the characteristics of compact structure, good sealing, and easy operation.



The "one-piece" of this type of valve refers to the valve body being forged as a whole, with high strength and not easy to leak; The term 'threaded thread' indicates that its connection method is an internal thread interface (such as G, NPT, and other standards), which is easy to install in small-diameter pipelines and suitable for various media environments such as water, oil, and gas.





One-piece valve body: The valve body is integrally forged or cast, non-detachable, without body bolts, and features the most compact structure. Threaded connection: Both ends are internally threaded for direct screwing into pipelines, enabling convenient installation.

90° rotary on/off: Fully open or closed by rotating the handle 90°, allowing quick operation.

Reduced bore design: The internal ball passage is typically smaller than the nominal pipe diameter (e.g., actual bore approx. DN20 for DN25).





Model	Q11F(Q – Ball valve, 1 – Female thread, 1 – One-piece body, F – Fluoroplastic seal)
Nominal diameter	DN6 ~ DN100 (1/8" ~ 4")
Pressure rating	PN1.6 ~ 4.0MPa (16 ~ 40 kgf/cm²)
Temperature range	-20℃ ~ 180℃ (PTFE seal)
Valve body	Stainless steel 304, 316, brass
Seal	PTFE (Polytetrafluoroethylene)











• Compact size and light weight, suitable for confined spaces.
• No external leakage points; integral structure ensures excellent leakproof performance.
• Low cost and economical price.
• Quick installation; threaded connection requires no welding.
• Low flow resistance; nearly straight-through flow in full open position.





1. On-off control for general media such as water, oil, gas, steam, etc.
2. Instruments, air compressors, small equipment, and domestic / commercial pipelines.
3. Applications sensitive to cost and space, with low maintenance frequency.
