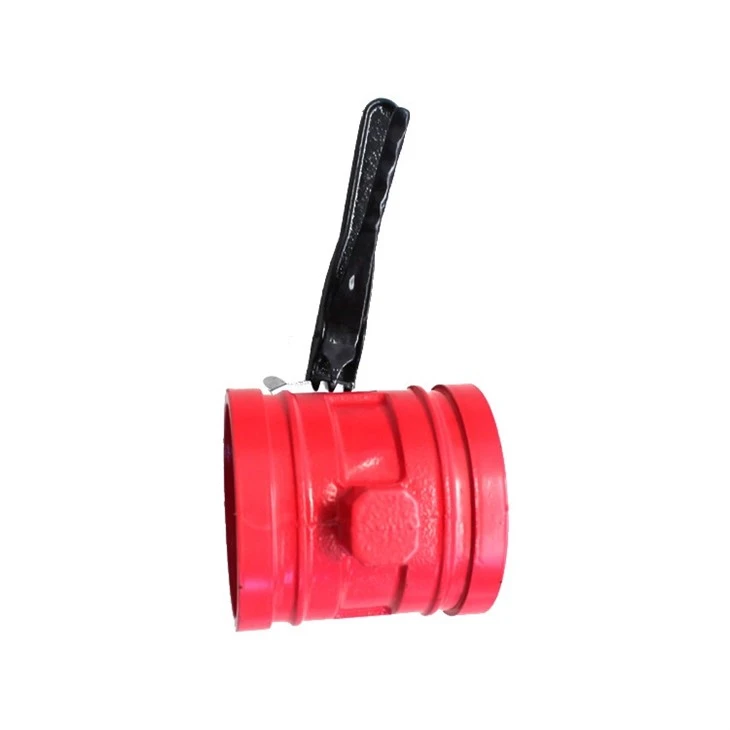

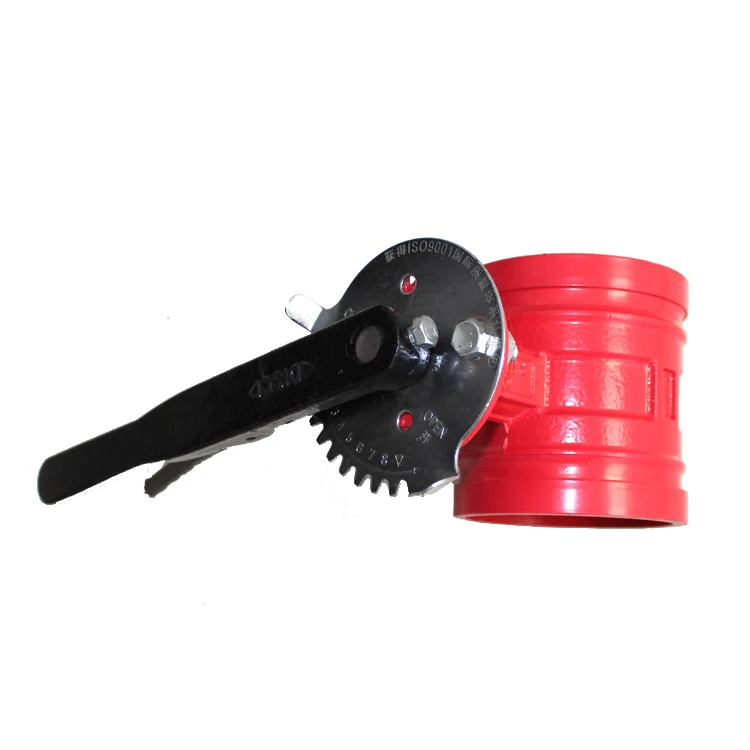

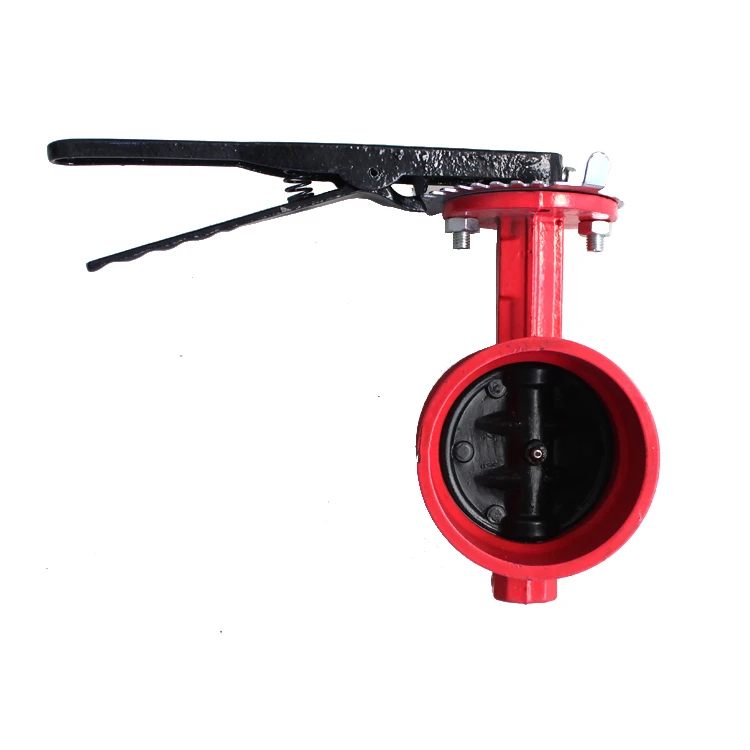

Butterfly Valve Grooved

Product Name: Butterfly valve grooved
Model: D81X-16Q
Dimensions: DN50-DN350
Connection Method: Wafer or Flange
Working Pressure: PN10 PN16
Temperature Range: -10℃-80℃





Butterfly valves are widely used in various industries for regulating flow. The grooved butterfly valve is one of the most popular types of butterfly valves due to its ease of installation and maintenance.



One of the key advantages of the grooved butterfly valve is that it can be installed quickly and easily. This is because the grooved design eliminates the need for welding or threading, which can be time-consuming and may require specialized tools. The valve can simply be grooved onto the pipe and secured in place with a clamp.



Another benefit of the grooved butterfly valve is that it requires minimal maintenance. The grooved design allows for easy access to the valve, making it straightforward to clean and inspect. It also means that the valve can be easily disassembled for repair or replacement if necessary.



In terms of performance, the grooved butterfly valve is well-regarded for its ability to provide accurate and reliable flow control. The valve's disc can be positioned to throttle or shut off the flow, which makes it ideal for applications where precise flow control is required.



Overall, the grooved butterfly valve is a versatile and dependable valve that is widely used across a range of industries. Its ease of installation and maintenance, coupled with its excellent performance, make it a popular choice for any system that requires precise flow control.





1. The design is novel and reasonable, the structure is perfect, the weight is light, and the opening and closing are quick.

2. The operating torque is small, the operation is convenient, labor-saving and dexterous.

3. It can be installed in any position and easy to maintain.

4. The seal can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage.

5. The sealing material has the characteristics of aging resistance, weak corrosion resistance and long service life.





1. The opening and closing is convenient and quick, labor-saving, and the fluid resistance is small, so it can be operated frequently.

2. Simple structure, small size and light weight.

3. It can transport mud, and there is less liquid accumulated at the mouth of the pipeline.

4. Under low pressure, good sealing can be achieved.

5. Good adjustment performance.
