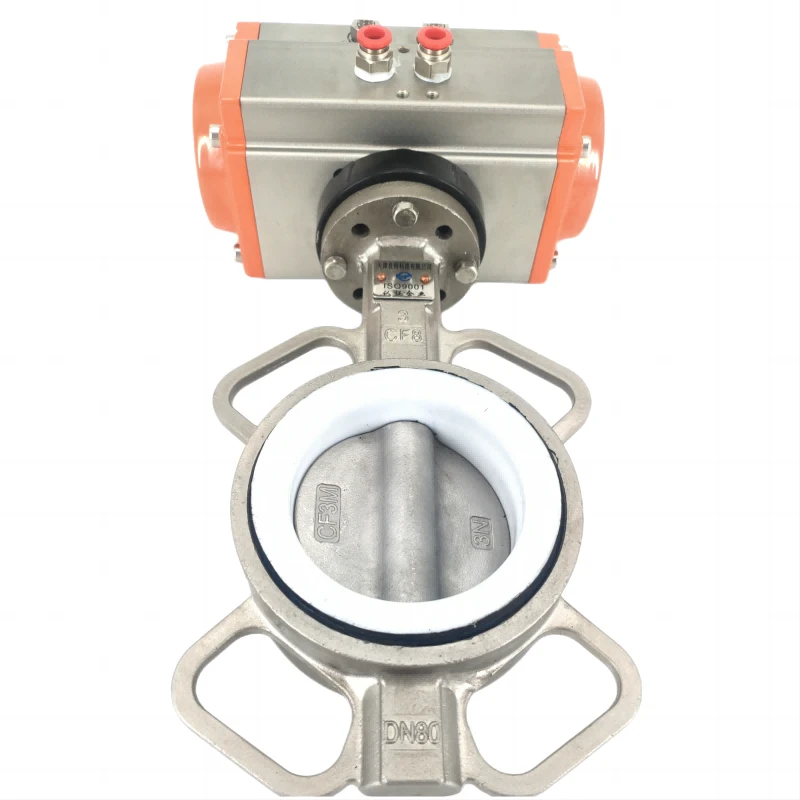

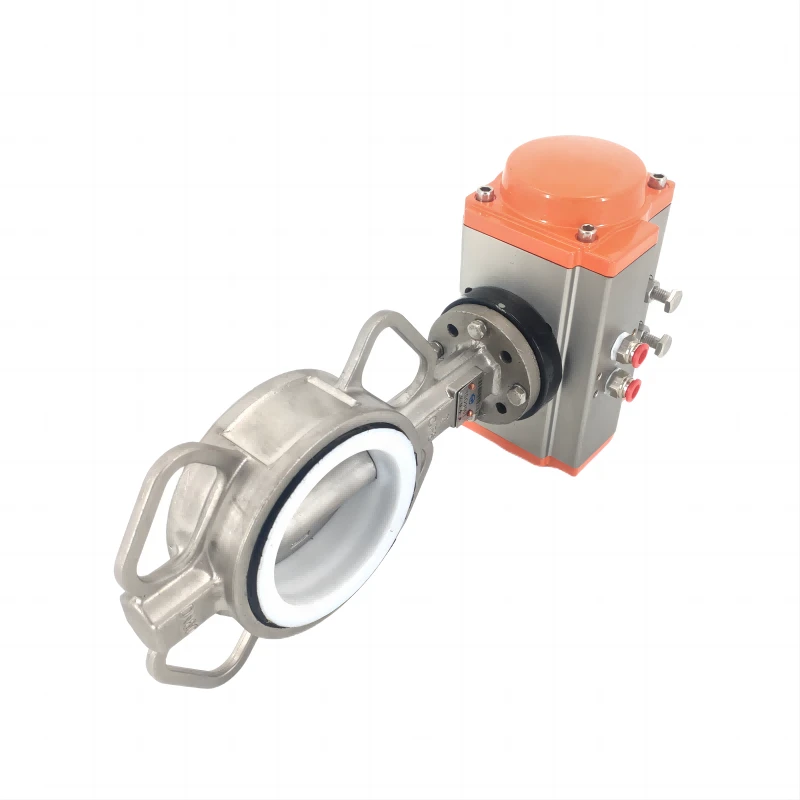

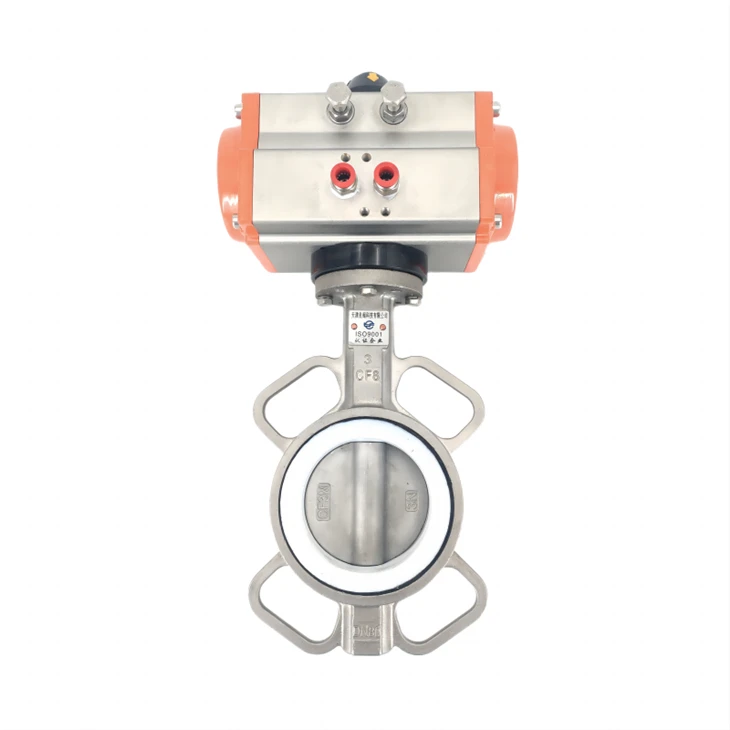

Pneumatic Wafer Stainless Steel PTFE Butterfly Valve
Valve body material:Ductile iron/WCB/304/316L, etc. are available
Valve plate material:304/316L/2507/1.4529/C958, etc. are available
Seal material:EPDM/NBR/PTFE/X7, etc. are available
| Product model | D671X-16P |
| Valve body material | Ductile iron/WCB/304/316L, etc. are available |
| Valve plate material | 304/316L/2507/1.4529/C958, etc. are available |
| Seal material | EPDM/NBR/PTFE/X7, etc. are available |
| Valve stem material | 2r13/304/316, etc. are available |
| Pressure level | PN10, PN16, 150LB, etc. are available |
| Using temperature | According to the maximum temperature of the sealing material, it can be selected below 200℃ |
| Drive mode | AT double acting/ATE single acting is available |
| Accessories | Filter, reply device, solenoid valve, manual mechanism, positioner are available |
Product Detail Presentation
Unmatched Durability and Strength
Our butterfly valve is made of premium stainless steel and is designed to survive the most demanding circumstances. Even in the most hostile settings, the valve will retain its integrity and functionality because to stainless steel's remarkable resistance to corrosion. It is an economical alternative for your operations because of its endurance, which translates to a longer service life and lower maintenance expenses.
Superior Sealing with PTFE
The valve is equipped with a Polytetrafluoroethylene (PTFE) seat, which is renowned for its exceptional resistance to chemicals and low coefficient of friction. Because PTFE is non-reactive, it can be used with a variety of fluids, including highly pure applications and harsh chemicals. As a result, your processes and goods are kept intact with a dependable, tight seal that stops leaks and contamination.
Compact and Versatile Design
The wafer design of our butterfly valve allows for easy installation between flanges, saving space and simplifying maintenance. Its compact size makes it an excellent choice for systems with limited space or requiring lightweight components. Additionally, the versatile design ensures compatibility with various piping standards and sizes, offering flexibility in different applications.
Key Features and Benefits
- High-Quality Stainless Steel Construction: Ensures exceptional durability and corrosion resistance.
- PTFE Seat: Provides superior sealing, chemical resistance, and low friction.
- Pneumatic Actuator: Offers fast, precise control and easy integration into automated systems.
- Wafer Design: Compact and easy to install, fitting a range of piping configurations.
- Wide Temperature and Pressure Range: Suitable for diverse industrial applications.
- Low Maintenance: Robust construction and reliable components reduce downtime and maintenance costs.
