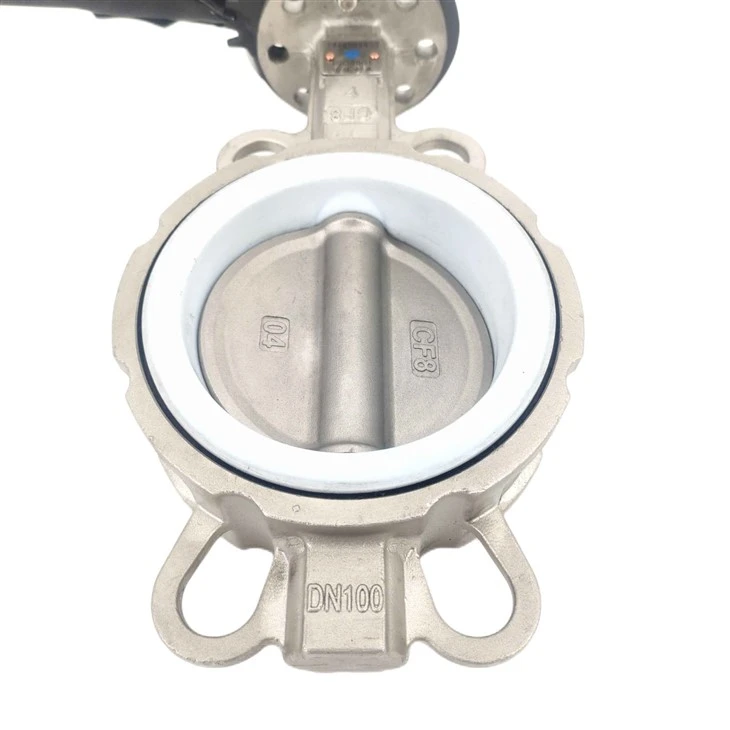

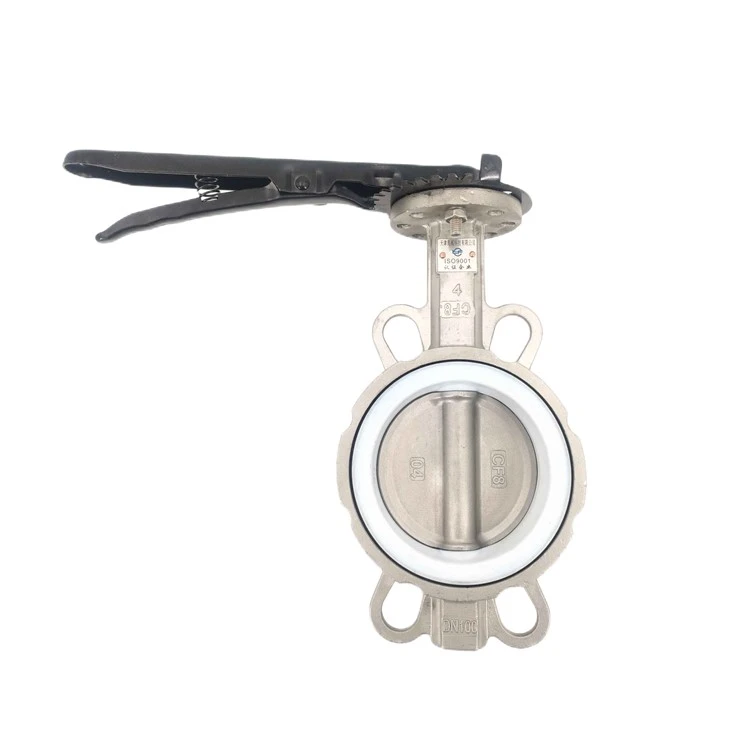

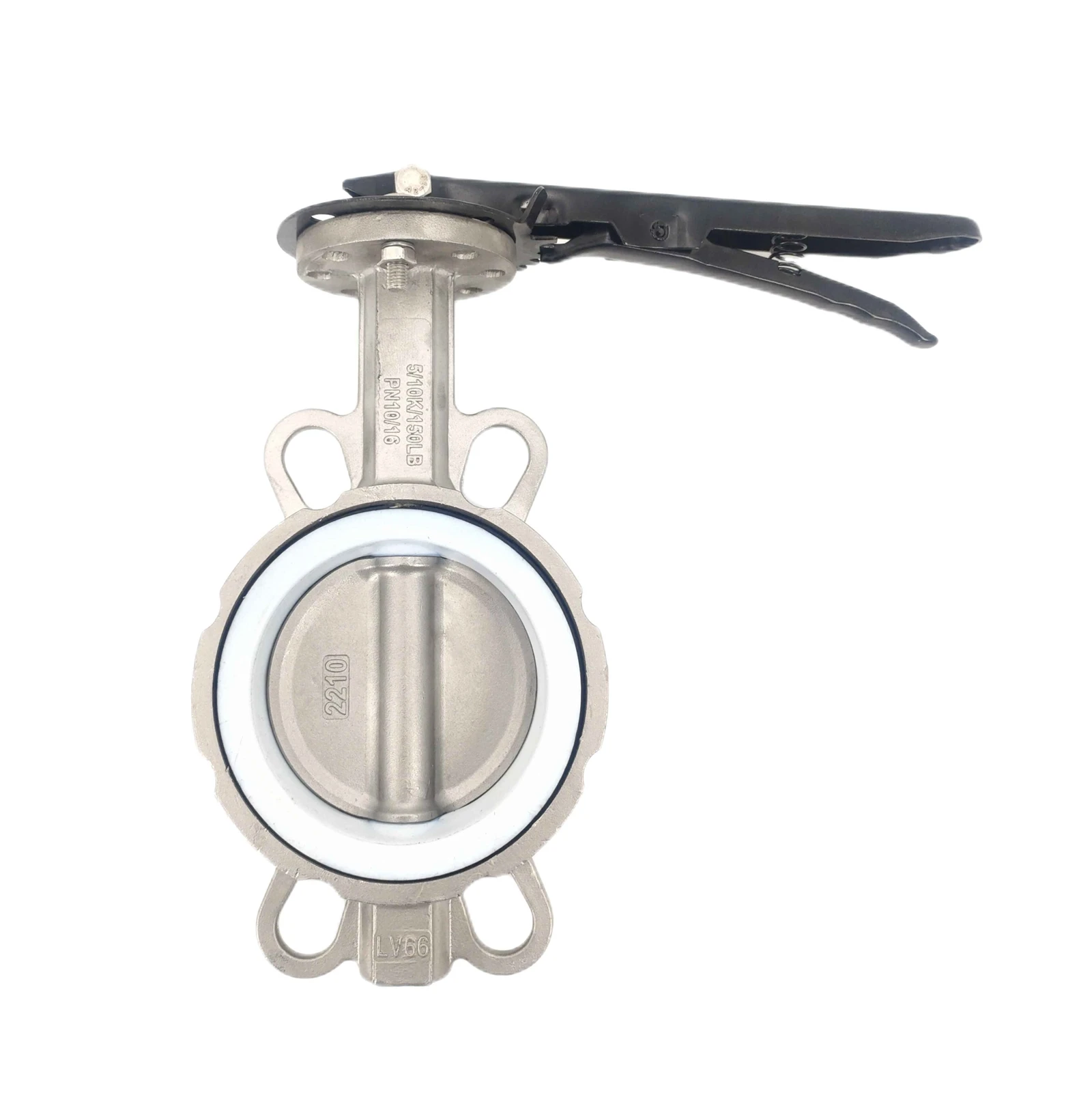

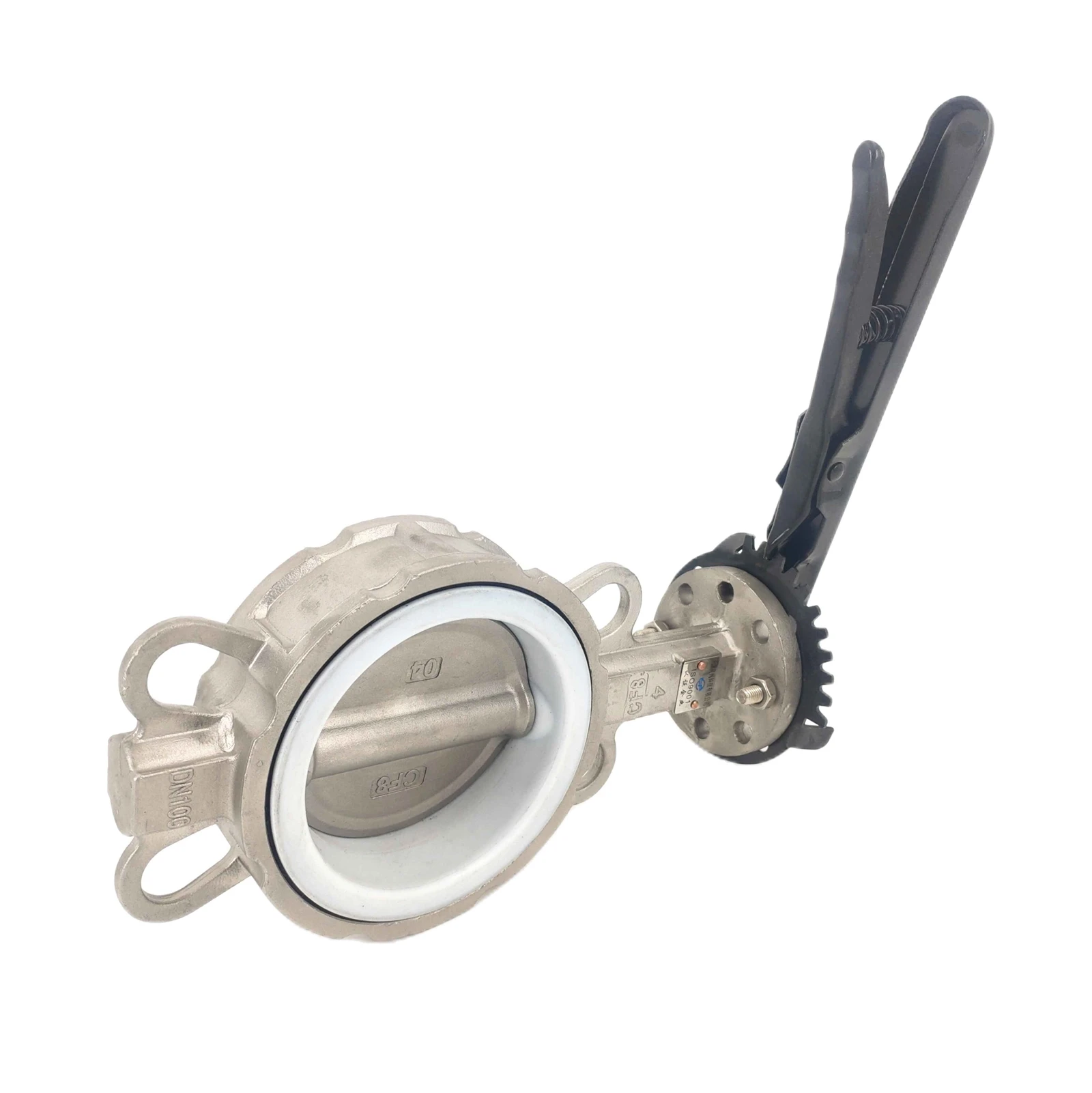

Lug Type Wafer Butterfly Valve

The D71F-10P Lug Type Wafer Butterfly Valve combines the compact design of a wafer valve with the structural strength of lug-style mounting, making it an excellent choice for industrial, commercial, and utility applications. Designed for PN10 pressure rating (10 bar), this valve ensures tight shut-off, easy installation, and long-term durability in demanding environments.



• Lug Type Wafer Design – Offers easy installation between flanges while providing threaded inserts (lugs) for secure mounting, eliminating the need for extra bolts.
• Bubble-Tight Sealing – Features an FKM/EPDM-lined disc for zero-leakage performance in water, air, gas, and mild chemical services.

Technical Specifications



Model	D71F-10P
Type	Lug Type Wafer Butterfly Valve (combines wafer + lug benefits)
Seat Material	FKM/EPDM (Fluoropolymer)
Pressure Rating	PN10 (10 bar / 145 psi)
Temperature Range	-20°C to 150°C (-4°F to 302°F)
Operation	Manual Lever
Connection	Lug Type Wafer (fits between flanges with threaded holes)
Standards	ISO, DIN, AWWA (customizable upon request)

As a trusted valve manufacturer, we guarantee:

• Easy installation & maintenance – Lug design allows for one-side flange removal without full disassembly
• Cost-effective solution – Combines the benefits of lug and wafer valves in one product
• Customization available – Different linings, handles, and certifications (API, ISO)
