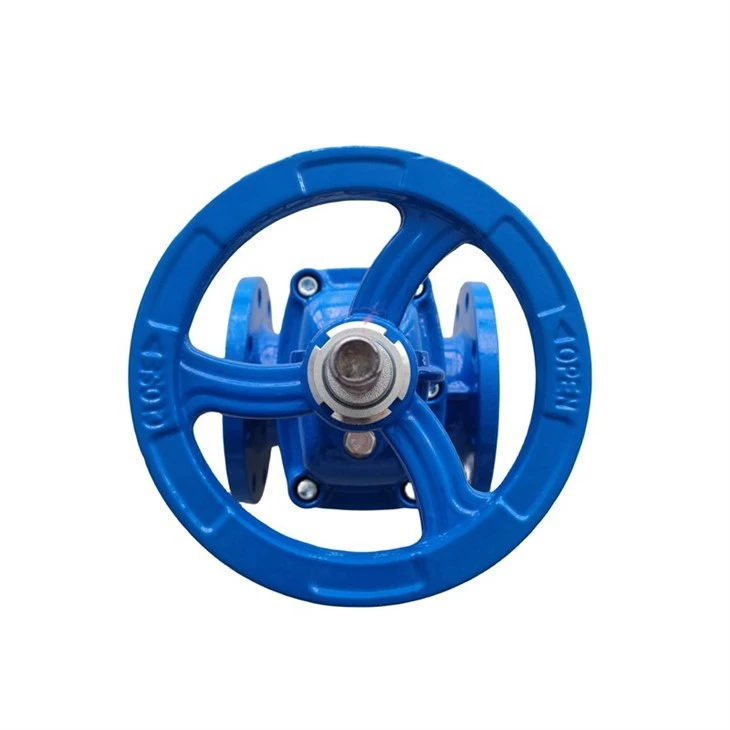

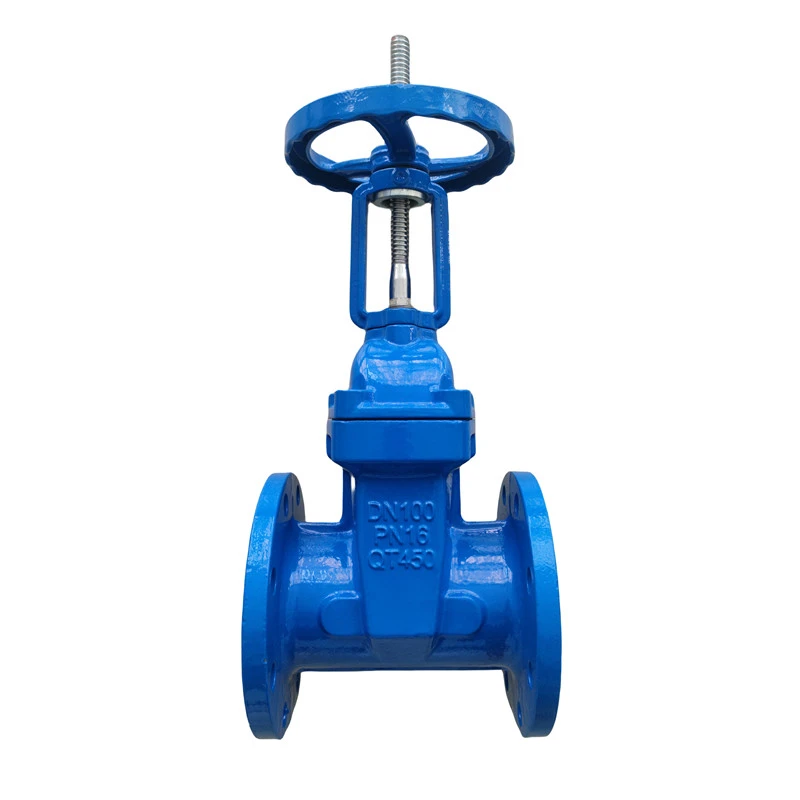

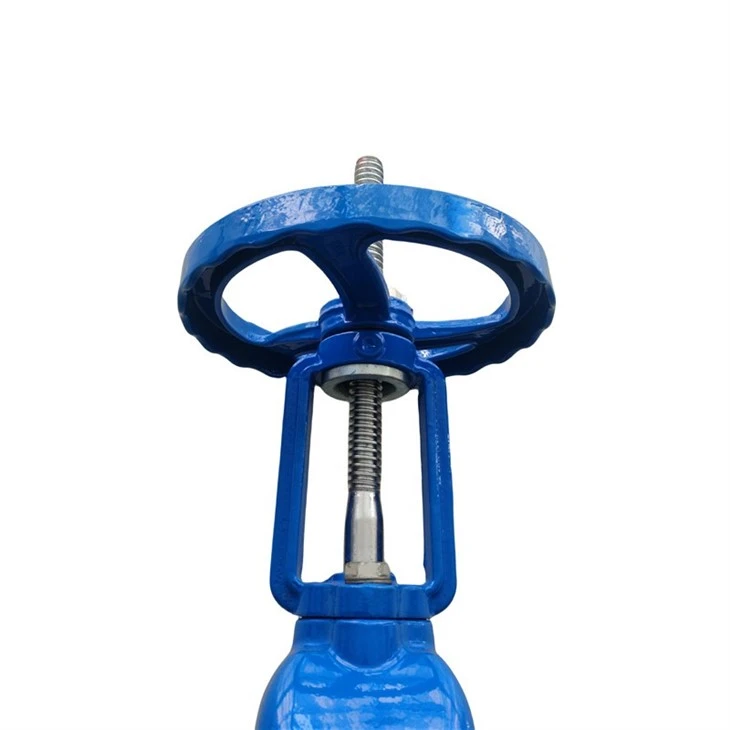

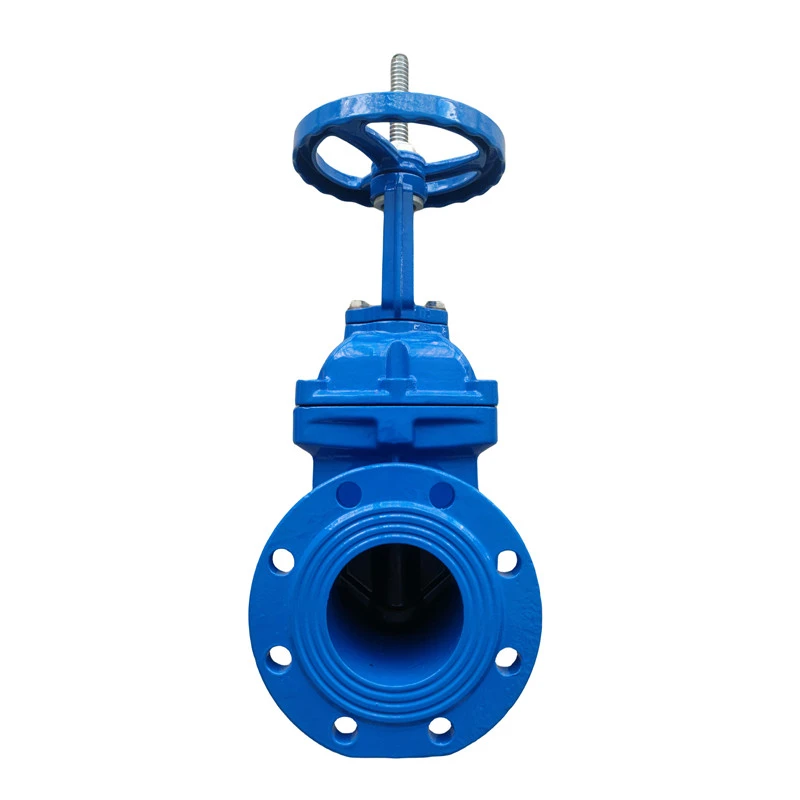

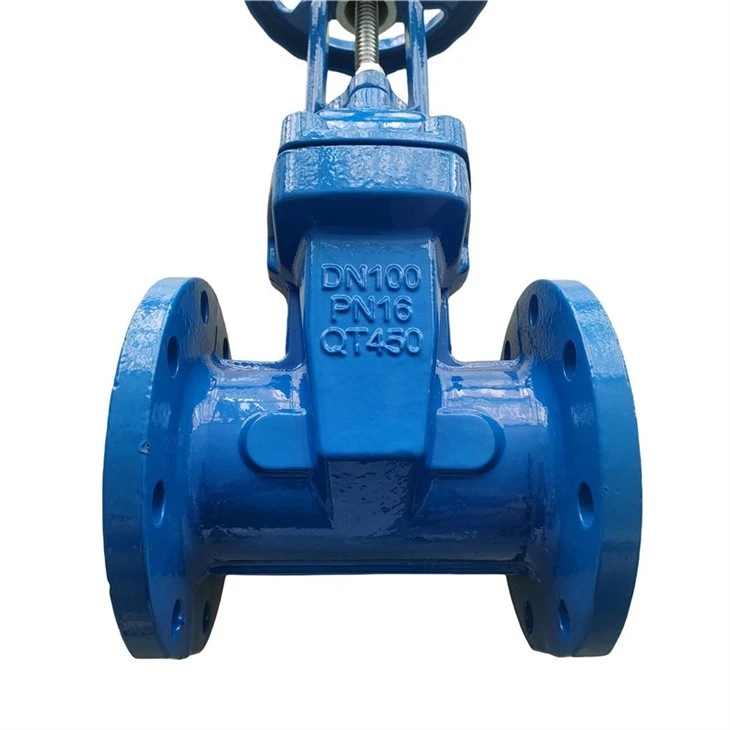

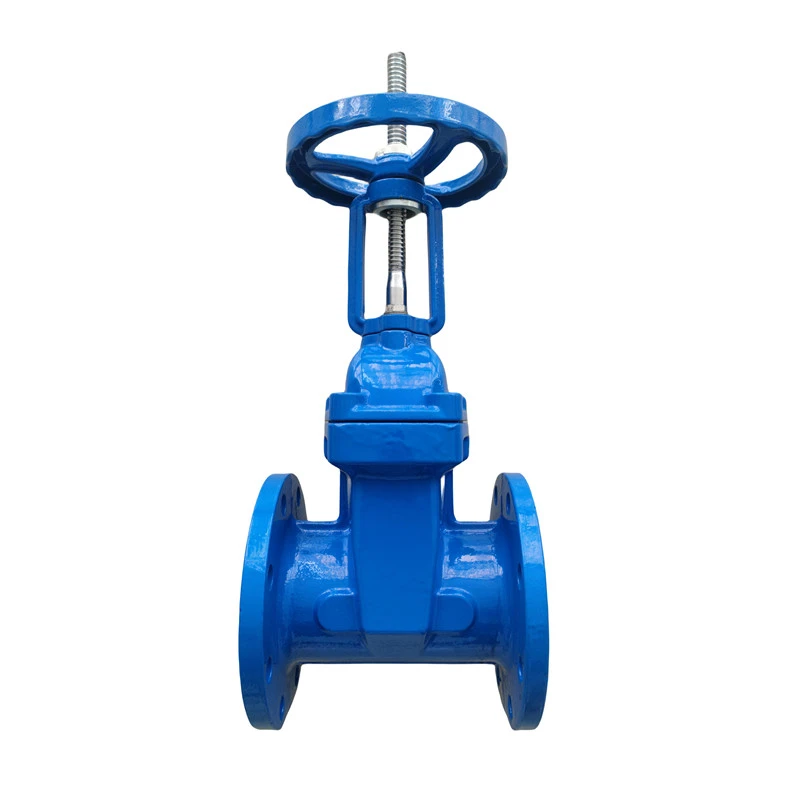

Double Flanged Gate Valve

Product Name: Double flanged gate valve
Model: Z41X-16Q
Dimensions: DN50-DN1200
Connection Method: Flange type
Working Pressure: PN16、PN10
Temperature Range: -10℃-80℃
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550





Double flanged gate valves are widely used in various industries such as oil and gas, water treatment, and chemical processing industries. These valves are highly efficient in controlling the flow of liquids through pipelines. They are designed to withstand high pressure and extreme temperatures, making them ideal for a range of industrial applications.



One of the main advantages of double flanged gate valves is their robustness. They are made from high-quality materials that are designed to withstand harsh industrial environments. This means that they are reliable and long-lasting, providing a cost-effective solution for industrial processes.



Another advantage of double flanged gate valves is their simplicity. These valves are easy to operate and maintain, making them an attractive option for many industries. They can be easily installed and adjusted, reducing downtime and increasing productivity.



In addition, double flanged gate valves offer superior flow control. They provide a tight seal, which prevents leaks and ensures that the flow of liquid is regulated accurately. This makes them an excellent choice for applications where precise flow control is essential.



Overall, double flanged gate valves are a vital component in many industrial processes. Their robustness, simplicity, and superior flow control make them an excellent choice for a range of applications. As technology advances, these valves will continue to play a vital role in regulating the flow of industrial liquids.









The advantages of soft sealed gate valves include good sealing performance, low rusting resistance, flat bottom design, precision casting, light weight, and low corrosion resistance. The specific advantages are as follows:

1. Good sealing performance:

The use of high-quality rubber to tightly wrap the gate plate of the soft sealing gate valve improves sealing performance and is not prone to detachment.

2. Not easy to rust:

The use of powder epoxy resin coating on the valve body of a soft sealed gate valve can effectively resist oxidation, prevent rust, and prevent corrosion of the valve body. Soft sealed gate valves are often used in sewage treatment systems.

3. Flat bottom design:

Traditional gate valves usually have a groove at the bottom of the valve seat. When the medium flows through the valve in the pipeline, impurities and particles contained in the medium will settle and accumulate in this groove, causing the valve to fail to close tightly, leading to leakage and accidents. The bottom of the valve seat of the soft sealing gate valve is designed with a flat bottom and no grooves. After the medium flows through the pipeline, there will be no accumulation of impurities or particles. The sealing performance of the valve is guaranteed to avoid leakage.

4. Precision casting:

The valve body of the soft sealing gate valve adopts precision casting, with accurate dimensions. There is no need for any further precision machining inside the valve body, and the sealing performance of the valve body is guaranteed.

5. Lightweight:

The soft sealing gate valve uses ductile iron as the body material, and the overall weight of the valve is 20% -30% lighter than traditional gate valves. The lighter weight makes the soft sealing gate valve more convenient for installation and maintenance.

6. Not easily corroded:

The interior of the soft sealing gate valve body is coated with non-toxic epoxy resin, and the gate plate is completely wrapped in rubber, which can effectively prevent the interior of the valve body from being corroded by the medium in the pipeline.
