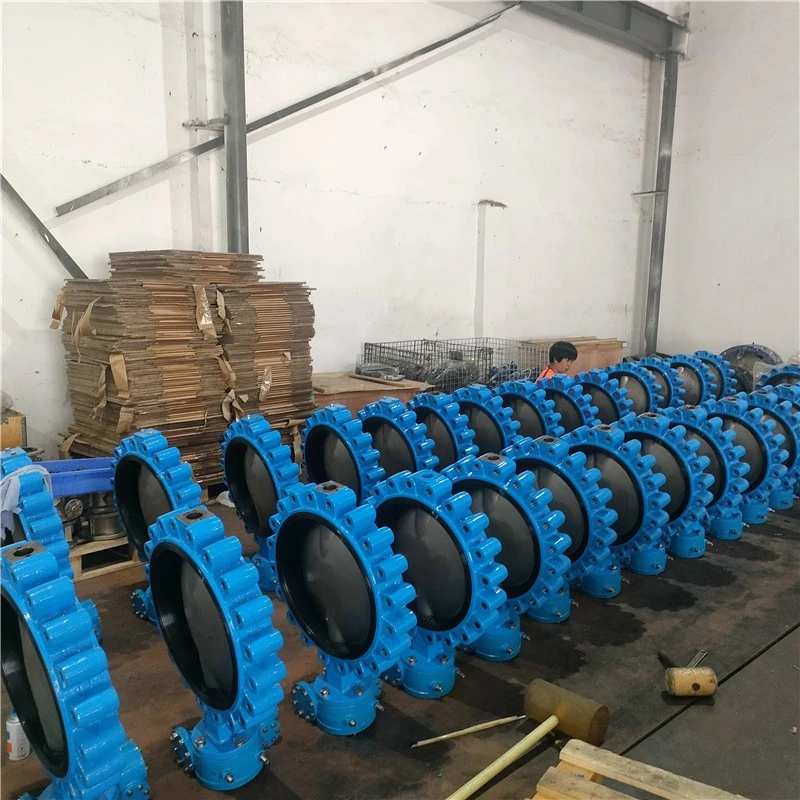

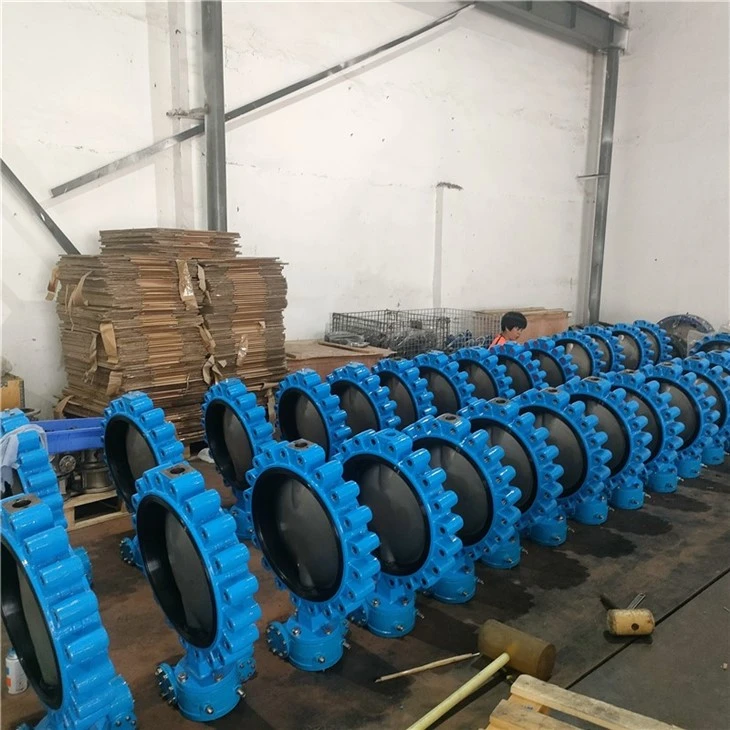

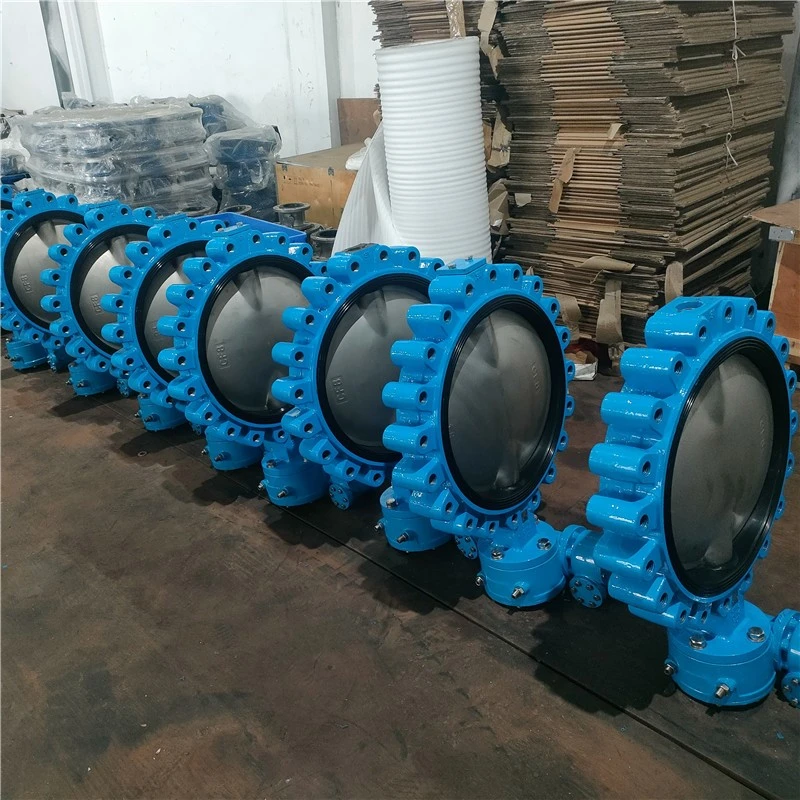

Full Lug Type Butterfly Valve

Product Name: Full lug type butterfly valve
Model: LTD371X-16Q
Dimensions: DN40-DN1000
Connection Method: Wafer
Working Pressure: PN10 PN16 150LB 5K 10K
Temperature Range: -10℃-100℃









Full lug type butterfly valves are an essential part of many industrial processes, providing reliable and efficient flow control. These valves are designed with a full lug pattern that ensures secure installation and maximum valve performance. They are commonly used in a wide range of applications, including oil and gas, chemical processing, water treatment, and many others.



One of the key benefits of full lug type butterfly valves is their versatility. They can easily be adapted to suit a variety of piping configurations, making them an excellent choice for both new installations and retrofit projects. Additionally, these valves are available in a range of sizes, materials, and pressure ratings, ensuring that they are suitable for virtually any application.



Another advantage of full lug type butterfly valves is their durability. These valves are designed to withstand the rigors of harsh industrial environments, ensuring long-lasting performance and minimal maintenance requirements. They are typically constructed from high-grade materials such as stainless steel, carbon steel, and ductile iron, which are selected for their resistance to corrosion, erosion, and other forms of wear and tear.



In addition to their durability, full lug type butterfly valves are also known for their ease of operation. With a simple quarter-turn design, these valves can be quickly and easily opened or closed as needed, allowing for precise flow control and efficient system performance. They can also be easily automated using electric or pneumatic actuators, further streamlining the operation of industrial processes.



Overall, full lug type butterfly valves are an essential component of many industrial applications. Their versatility, durability, and ease of operation make them an excellent choice for a wide range of piping configurations and flow control requirements. Whether used in oil and gas, chemical processing, water treatment, or any other industry, full lug type butterfly valves are sure to provide reliable and efficient performance for many years to come.





1. The design is novel and reasonable, the structure is perfect, the weight is light, and the opening and closing are quick.

2. The operating torque is small, the operation is convenient, labor-saving and dexterous.

3. It can be installed in any position and easy to maintain.

4. The seal can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage.

5. The sealing material has the characteristics of aging resistance, weak corrosion resistance and long service life.





1. The opening and closing is convenient and quick, labor-saving, and the fluid resistance is small, so it can be operated frequently.

2. Simple structure, small size and light weight.

3. It can transport mud, and there is less liquid accumulated at the mouth of the pipeline.

4. Under low pressure, good sealing can be achieved.

5. Good adjustment performance.
